Domestic heating oil tanks
Built for your home.
Built to last.
Steel heating oil tanks, made in Suffolk. Choose from our standard range or ask us for a bespoke size to suit your property.
Made in BritainBuilt in our Suffolk works
Bespoke sizingMade to fit your property
Single skin or bundedOptions to suit your installation
10-year warrantySubject to warranty terms
Standard domestic range
Find your tank size.
Four standard capacities, available single skin or bunded. Need different dimensions? We also manufacture bespoke tanks.

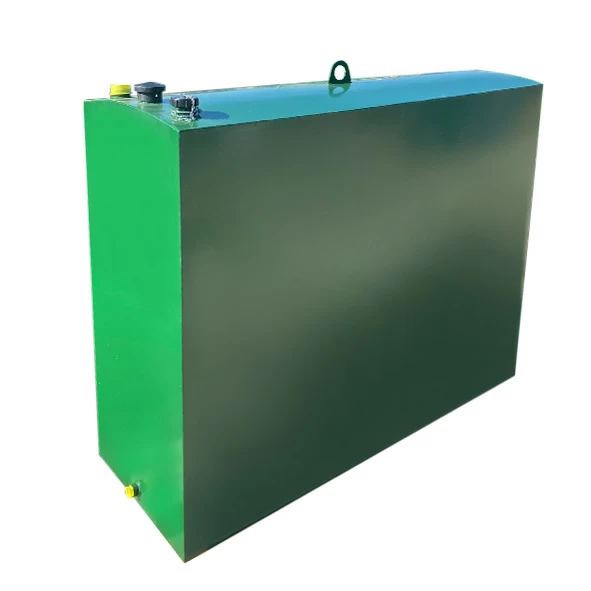

1,100
litres1520 × 620 × 1200 mm
£605.10 ex VAT1600 × 750 × 1200 mm
£1,684.15 ex VAT1,300
litres1830 × 620 × 1200 mm
£638.56 ex VAT1900 × 740 × 1200 mm
£1,747.83 ex VAT1,800
litres1830 × 820 × 1200 mm
£676.09 ex VAT1900 × 900 × 1200 mm
£1,852.29 ex VAT2,500
litres1830 × 1150 × 1200 mm
£735.07 ex VAT1900 × 1250 × 1200 mm
£1,811.18 ex VATAll prices exclude VAT. Delivery and installation are priced separately.
Dimensions: length × width × height. Single-skin suitability must be confirmed for your site.
Made to suit the space
Made to fit your property.

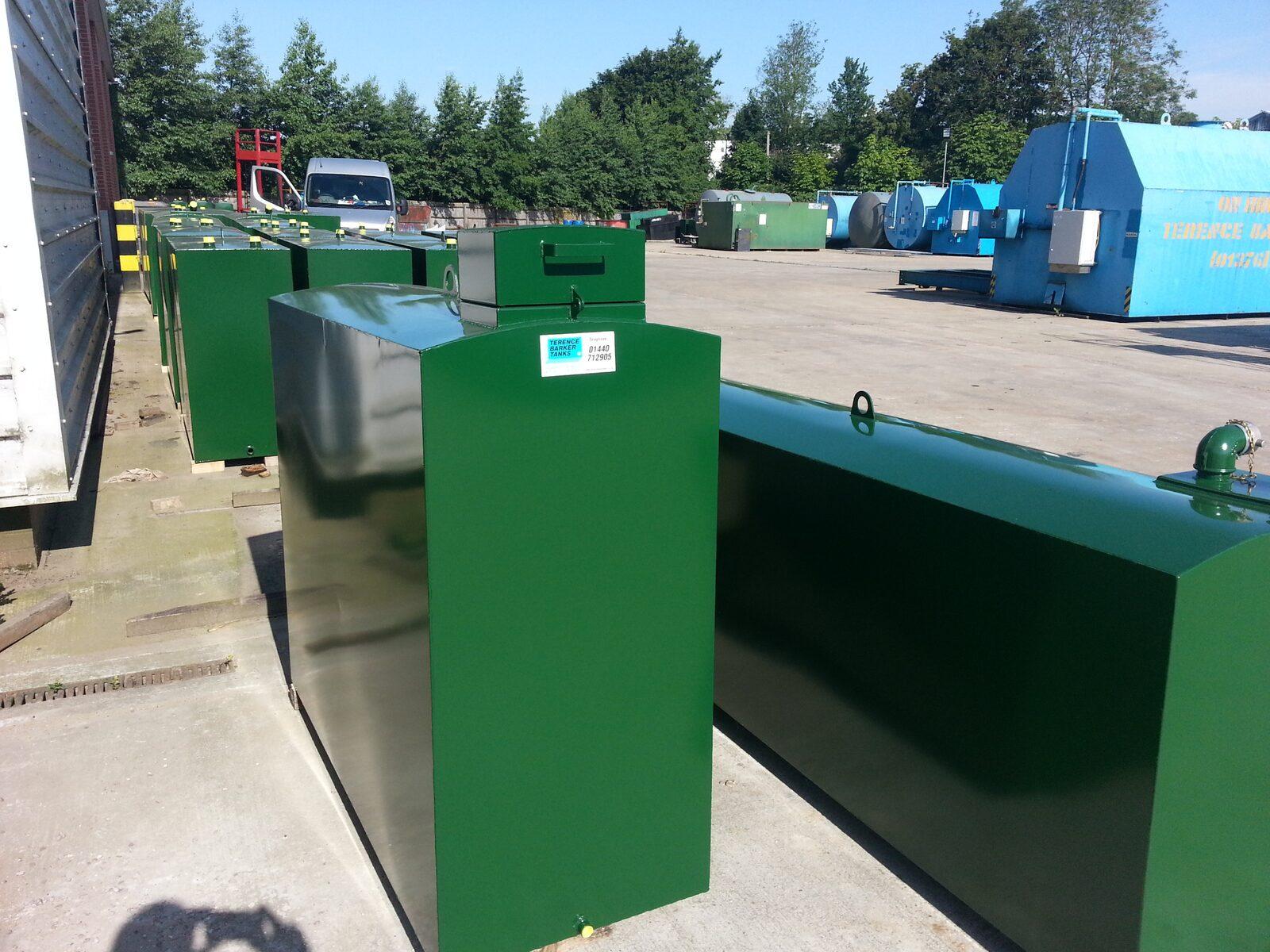

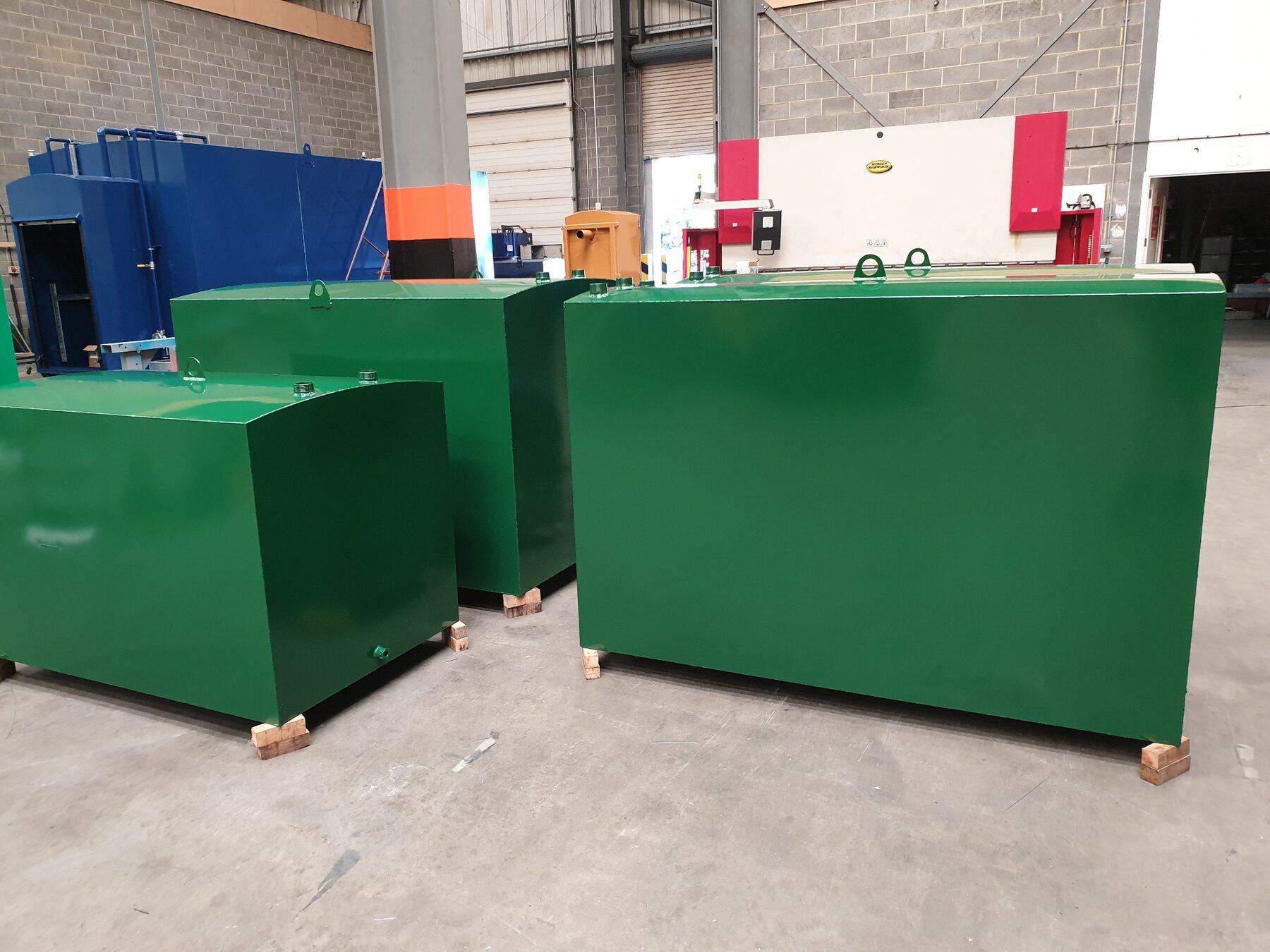

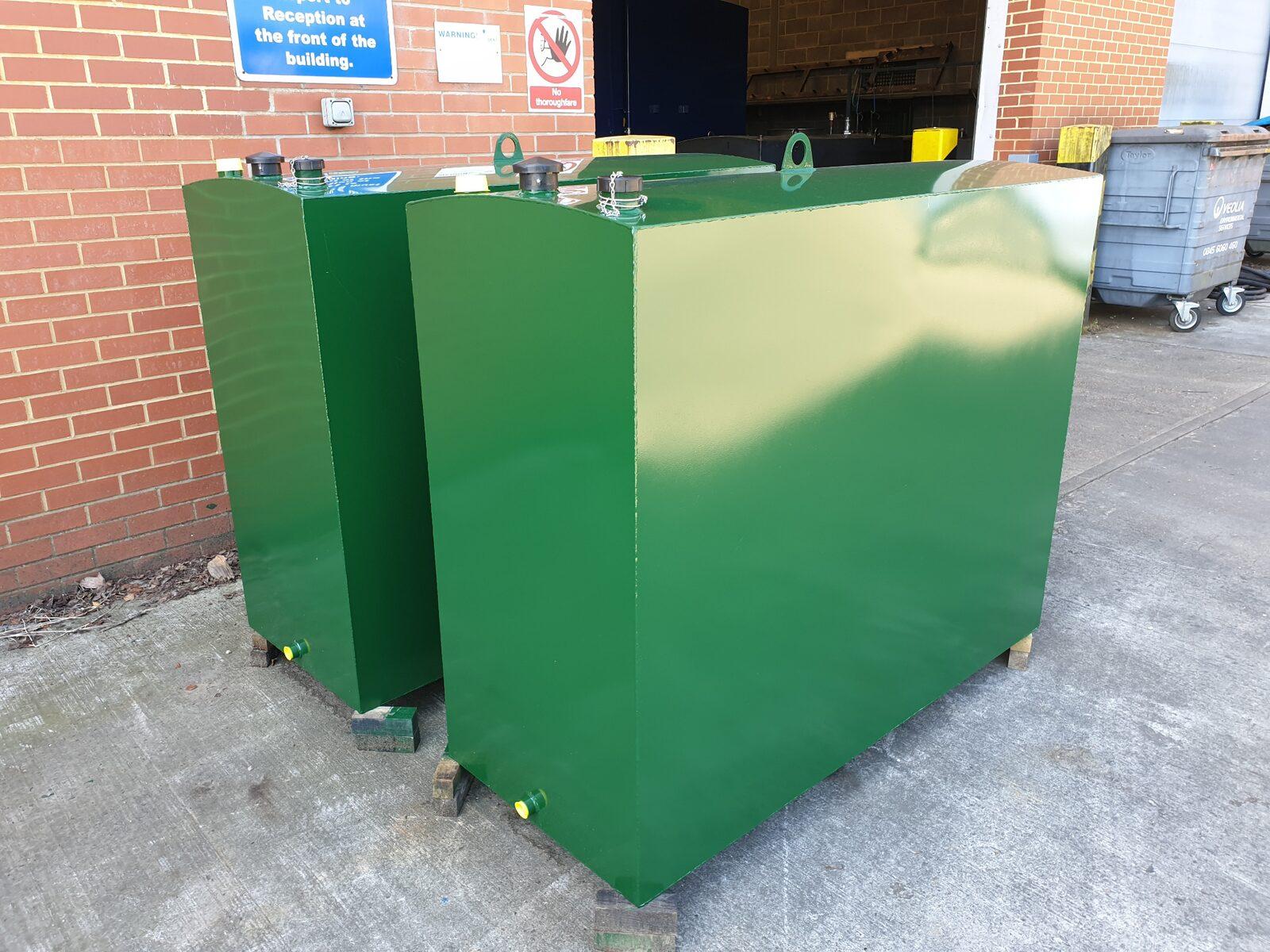

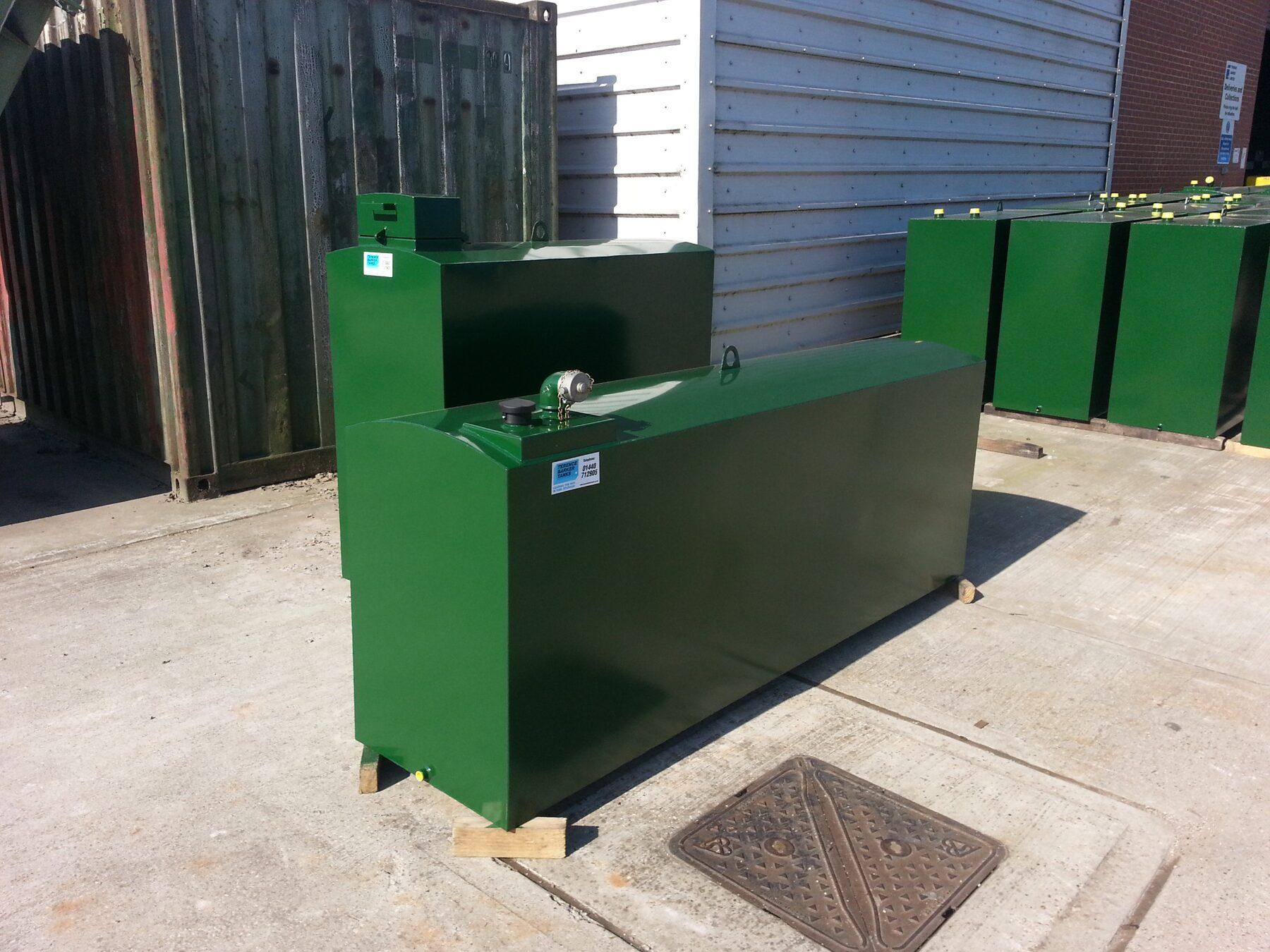

A selection of tanks from our Haverhill works, showing how capacity, proportions and fittings can be adapted to the installation.
Why steel?
Practical strength.
Flexible dimensions.
Steel lets us adapt the proportions of your tank without giving away valuable capacity—ideal for narrow passages, low walls and awkward garden spaces.
Construction & fittings
Specified for your installation.
Your quotation confirms the construction, fittings and any optional equipment included with your tank.
Construction options
Choose single skin or an integral bund for secondary containment, subject to site suitability.

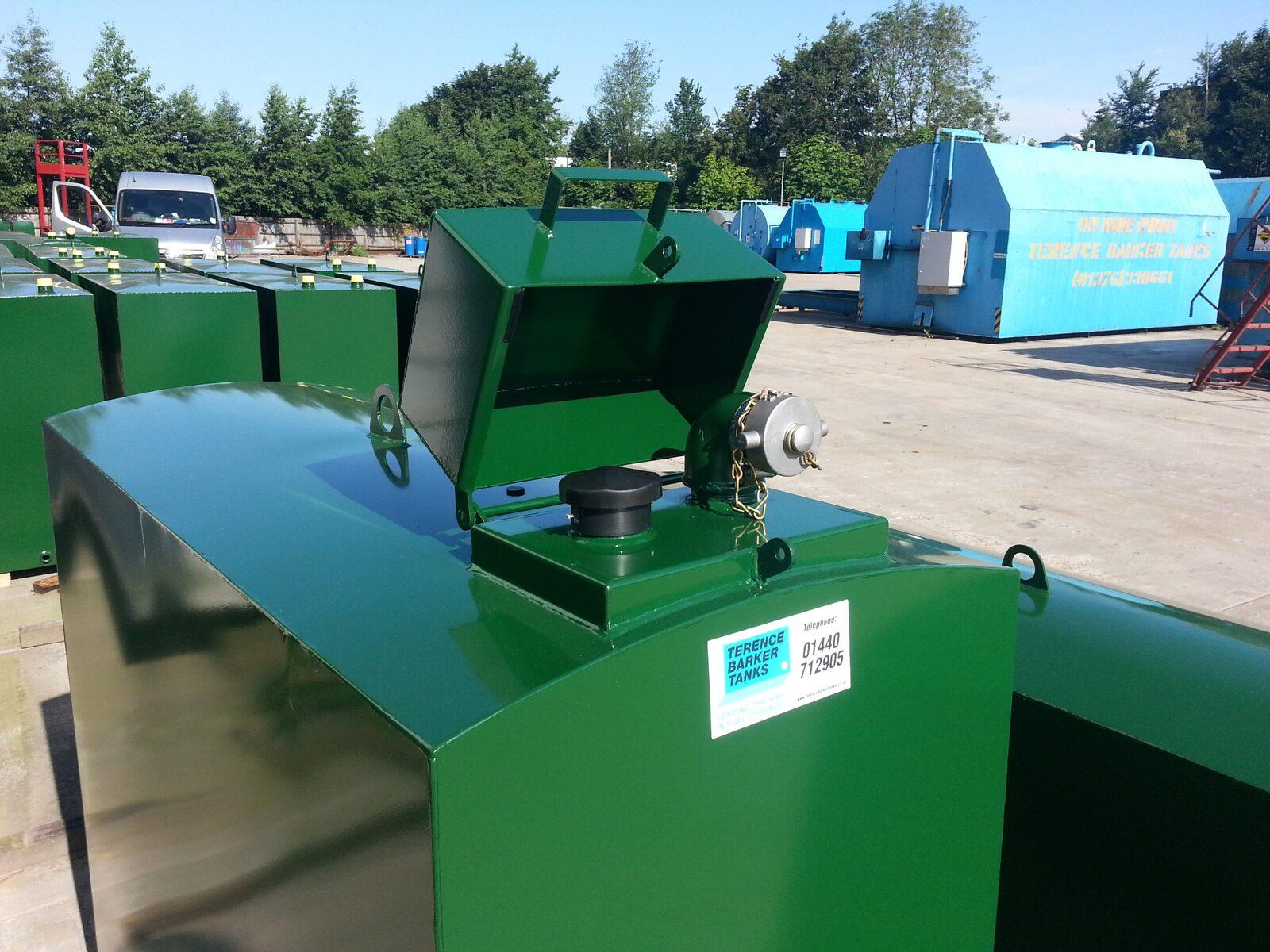

Practical fill point
Fill, vent and outlet positions arranged around the way your site works.
Gauge options
Optional contents gauging to help you check the oil level and plan your next delivery.
Made for the location
Capacity and proportions balanced to make sensible use of the available space.
Properly engineered
Manufactured and tested in Suffolk.
Manufactured in line with BS 799-5 Type J and applicable UK oil storage requirements, with every tank fabricated and tested by our own team in Haverhill.
One experienced team
Delivery, installation and replacement.
Need more than the tank? We can survey, deliver, install and decommission the old unit, so the handover is clear from day one.
- 01
Talk it through
Tell us the capacity, access and space you have. Photos and rough measurements are a useful start.
- 02
Design & quote
We specify a tank and fitting arrangement for the property, with installation priced clearly where required.
- 03
Build in Suffolk
Your tank is fabricated, finished and tested by the Terence Barker manufacturing team.
- 04

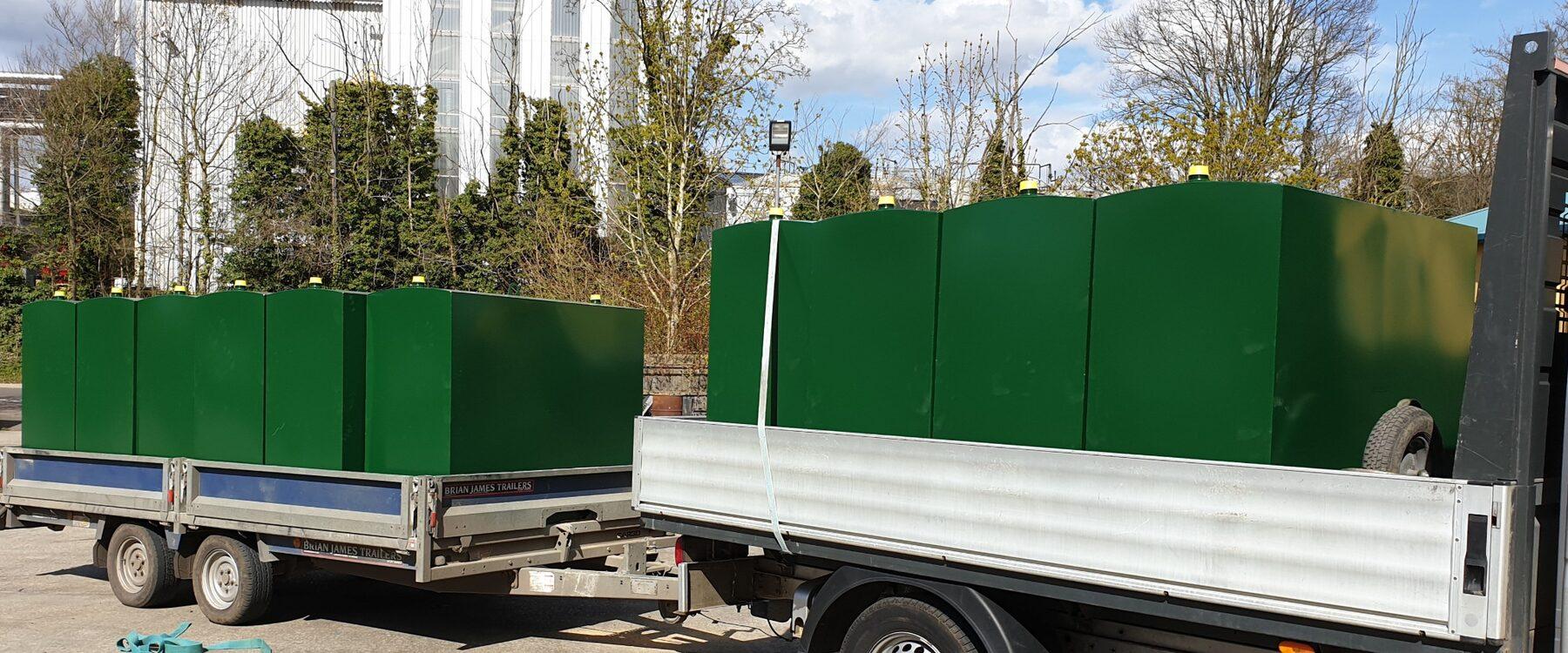

Deliver & install
Our experienced team positions and connects the tank, with removal of the old system available.
Useful before you call
Before you order.
Every property is different. These are the usual starting points; we’ll confirm what applies to yours.
Why choose a steel heating oil tank?+
Steel is robust and can be fabricated to non-standard proportions, which is particularly useful where the available footprint is narrow, low or otherwise awkward.
What does “bunded” mean?+
A bunded tank has a second outer containment tank around the inner fuel tank. It is designed to contain the contents if the inner tank or its fittings leak.
Can you remove my existing tank?+
Yes. Decommissioning and removal can be included with delivery and installation of the replacement tank, subject to a site review.
Do I need exact measurements for a quote?+
No. A postcode, approximate capacity, a few photos and the rough available space are enough to begin. We can identify what needs checking before manufacture.
Do you work outside Suffolk?+
Yes. Terence Barker supplies and installs tanks nationwide from its Haverhill manufacturing base.
Free, no-obligation quote
Talk to our tank team.
Give us the basics and your email app will prepare an enquiry for our sales team. Photos and measurements can be added before you send it.
